Updating Multiple Databases
The J2EE transaction manager controls all enterprise bean transactions except for bean-managed JDBC transactions. The J2EE transaction manager allows an enterprise bean to update multiple databases within a transaction. The figures that follow show two scenarios for updating multiple databases in a single transaction.

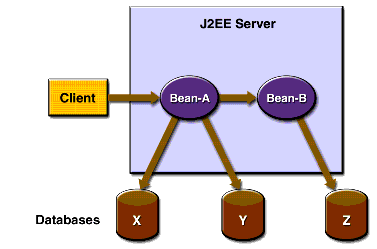

In Figure 30-2, the client invokes a business method in
Bean-A. The business method begins a transaction, updates Database X, updates Database Y, and invokes a business method inBean-B. The second business method updates Database Z and returns control to the business method inBean-A, which commits the transaction. All three database updates occur in the same transaction.
Figure 30-2 Updating Multiple Databases

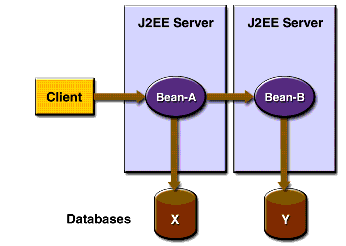

In Figure 30-3, the client calls a business method in
Bean-A, which begins a transaction and updates Database X. ThenBean-Ainvokes a method inBean-B, which resides in a remote J2EE server. The method inBean-Bupdates Database Y. The transaction managers of the J2EE servers ensure that both databases are updated in the same transaction.
