You can see the entire program capvar.cpp here or view it online in the standard distribution.

#include <ilsched/iloscheduler.h>

ILOSTLBEGIN

#if defined(ILO_SDXLOUTPUT)
#include "sdxloutput.h"
#endif


IloInt NumberOfActivities = 10;
IloInt NumberOfDays = 20;
IloNum AvailableCapacities[] = {2, 5, 5, 5, 3, 3, 2, 1, 0, 5,
                                2, 4, 5, 3, 2, 1, 4, 2, 1, 3};
IloNum Durations[] = {2, 4, 5, 6, 8, 2, 1, 3, 4, 6};
IloNum RequiredCapacities[] = {1, 1, 1, 1, 1, 2, 2, 1, 2, 1};
///////////////////////////////////////////////////////////////////////////////
//
// PROBLEM DEFINITION
//
///////////////////////////////////////////////////////////////////////////////

IloModel
DefineProblem(IloEnv env,
              IloInt numberOfDays,
              IloNum* availableCapacities,
              IloInt numberOfActivities,
              IloNum* durations,
              IloNum* requiredCapacities,
              IloDiscreteResource& resource)
{
  /* CREATE THE MODEL. */
  IloModel model(env);
  IloSchedulerEnv schedEnv(env);
  schedEnv.setOrigin(0);
  schedEnv.setHorizon(numberOfDays);
  /* CREATE THE RESOURCE. */
  IloNum capacity = 0;
  IloInt day;
  for (day = 0; day < numberOfDays; day++)
    if (capacity < availableCapacities[day])
      capacity = availableCapacities[day];
  resource = IloDiscreteResource(env, capacity);
  /* POST THE MAXIMAL CAPACITY CONSTRAINTS. */
  for (day = 0; day < NumberOfDays; day++)
    resource.setCapacityMax(day, day + 1, availableCapacities[day]);
  /* CREATE THE ACTIVITIES AND POST THE RESOURCE REQUIREMENT
     CONSTRAINTS. */
  char buffer[128];
  IloInt i;
  for (i = 0; i < numberOfActivities; i++) {
    IloActivity activity(env, durations[i]);
    sprintf(buffer, "A%ld", i);
    activity.setName(buffer);
    model.add(activity.requires(resource, requiredCapacities[i]));
  }
  /* RETURN THE MODEL. */
  return model;
}

///////////////////////////////////////////////////////////////////////////////
//
// PRINTING OF SOLUTIONS
//
///////////////////////////////////////////////////////////////////////////////

void
PrintSolution(IloSolver solver, IloDiscreteResource resource)
{
  IlcScheduler scheduler(solver);
  IlcDiscreteResource schedResource =
    scheduler.getDiscreteResource(resource);
  for(IlcResourceConstraintIterator iterator(schedResource);
      iterator.ok();
      ++iterator) {
    IlcActivity activity = iterator.getActivity();
    IlcCapRct capRct(*iterator);
    solver.out() << " Activity " << activity.getName() << " requires "
           << capRct.getCapacity() << " person(s) from day "
           << activity.getStartMin() << " to day "
           << activity.getEndMin() << endl;
  }
  IlcInt timeMin = scheduler.getTimeMin();
  IlcInt timeMax = scheduler.getTimeMax();
  for (IlcInt day = timeMin; day < timeMax; day++)
    solver.out() << " Work on day " << day << " requires "
           << schedResource.getCapacityMin(day) << " out of "
           << AvailableCapacities[day] << " person(s)" << endl;
}


///////////////////////////////////////////////////////////////////////////////
//
// MAIN FUNCTION
//
///////////////////////////////////////////////////////////////////////////////

int main()
{
  try {
    IloEnv env;
    IloDiscreteResource resource;
    IloModel model = DefineProblem(env,
                                   NumberOfDays,
                                   AvailableCapacities,
                                   NumberOfActivities,
                                   Durations,
                                   RequiredCapacities,
                                   resource);

    IloSolver solver(model);
    /* FILL AN ARRAY WITH THE VARIABLES REPRESENTING THE START TIMES
       OF THE ACTIVITIES. */
    IloNumVarArray startTimes(env, NumberOfActivities, 0, IloInfinity, ILOINT);
    IloInt i = 0;
    for (IloIterator<IloActivity> iterator(env);
         iterator.ok();
         ++iterator) {
      IloActivity activity = *iterator;
      model.add(startTimes[i] == activity.getStartExpr());
      i++;
    }
    /* DEFINE A GOAL THAT GENERATE A SOLUTION TO THE PROBLEM. */
    IloGoal goal = IloGenerate(env, startTimes, IlcChooseMinMinInt);
    if (solver.solve(goal)) {
      PrintSolution(solver, resource);
      solver.printInformation();
#if defined(ILO_SDXLOUTPUT)
      IloSDXLOutput output(env);
      ofstream outFile("capvar.xml");
      output.write(IlcScheduler(solver), outFile);
      outFile.close();
#endif
    } else
      solver.out() << "No solution!" << endl;
    env.end();
  } catch (IloException& exc) {
    cout << exc << endl;
  }

  return 0;
}

///////////////////////////////////////////////////////////////////////////////
//
// RESULTS
//
///////////////////////////////////////////////////////////////////////////////

/*

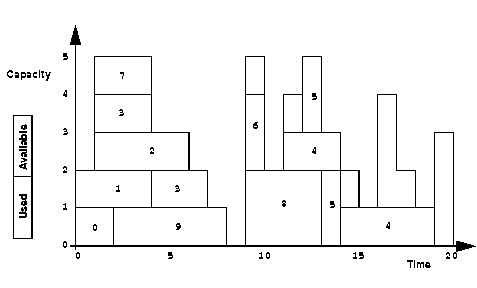

 Activity A9 requires 1 person(s) from day 2 to day 8
 Activity A8 requires 2 person(s) from day 9 to day 13
 Activity A7 requires 1 person(s) from day 1 to day 4
 Activity A6 requires 2 person(s) from day 9 to day 10
 Activity A5 requires 2 person(s) from day 12 to day 14
 Activity A4 requires 1 person(s) from day 11 to day 19
 Activity A3 requires 1 person(s) from day 1 to day 7
 Activity A2 requires 1 person(s) from day 1 to day 6
 Activity A1 requires 1 person(s) from day 0 to day 4
 Activity A0 requires 1 person(s) from day 0 to day 2
 Work on day 0 requires 2 out of 2 person(s)
 Work on day 1 requires 5 out of 5 person(s)
 Work on day 2 requires 5 out of 5 person(s)
 Work on day 3 requires 5 out of 5 person(s)
 Work on day 4 requires 3 out of 3 person(s)
 Work on day 5 requires 3 out of 3 person(s)
 Work on day 6 requires 2 out of 2 person(s)
 Work on day 7 requires 1 out of 1 person(s)
 Work on day 8 requires 0 out of 0 person(s)
 Work on day 9 requires 4 out of 5 person(s)
 Work on day 10 requires 2 out of 2 person(s)
 Work on day 11 requires 3 out of 4 person(s)
 Work on day 12 requires 5 out of 5 person(s)
 Work on day 13 requires 3 out of 3 person(s)
 Work on day 14 requires 1 out of 2 person(s)
 Work on day 15 requires 1 out of 1 person(s)
 Work on day 16 requires 1 out of 4 person(s)
 Work on day 17 requires 1 out of 2 person(s)
 Work on day 18 requires 1 out of 1 person(s)
 Work on day 19 requires 0 out of 3 person(s)
*/
