You can see the entire program trolley2.cpp here or view it online in the standard distribution.

#include <ilsched/iloscheduler.h>

ILOSTLBEGIN

const IloInt MACH1 = 1; // Machine 1 area
const IloInt MACH2 = 2; // Machine 2 area
const IloInt MACH3 = 3; // Machine 3 area
const IloInt AREAA = 4; // Arrival area
const IloInt AREAS = 5; // Stock area

const IloNum loadDuration     = 20;
const IloInt numberOfJobs     = 6;

const char* JobNames  [] = { "J1",   "J2",   "J3",   "J4",   "J5",   "J6"};
IloInt Machines1      [] = { 1,      2,      2,      1,      3,      2   };
IloNum Durations1     [] = { 80,     120,    80,     160,    180,    140 };
IloInt Machines2      [] = { 2,      3,      1,      3,      2,      3   };
IloNum Durations2     [] = { 60,     80,     60,     100,    80,     60  };

                              // M1   M2   M3   A     S
IloNum TransitDurations[] = {    0,  50,  60,  50,   90,    // M1
                                50,   0,  60,  90,   50,    // M2
                                60,  60,  0,   80,   80,    // M3
                                50,  90,  80,   0,  120,    // A
                                90,  50,  80, 120,    0   };// S

IloNum getMaxTransitDuration(IloInt nbArea, IloNum* transitDurations){
  IloNum max = 0;
  IloInt size = nbArea*nbArea;
  for (IloInt i = 0; i < size; i++)
    if (transitDurations[i] > max) max = transitDurations[i];
  return max;
}

///////////////////////////////////////////////////////////////////////////////
//
// DEFINITION OF THE JOB CLASS
//
///////////////////////////////////////////////////////////////////////////////

class Job {
public:
  const char* _name;
  IloActivity _loadA;
  IloActivity _unload1;
  IloActivity _process1;
  IloActivity _load1;
  IloActivity _unload2;
  IloActivity _process2;
  IloActivity _load2;
  IloActivity _unloadS;
  IloInt      _area1;
  IloInt      _area2;
  IloUnaryResource _machine1;
  IloUnaryResource _machine2;
public:
  Job(IloEnv env,
      const char*,
      IloNum loadDuration,
      IloUnaryResource machine1, IloNum duration1, IloInt area1,
      IloUnaryResource machine2, IloNum duration2, IloInt area2);
  void addToModel(IloModel model,
                  IloStateResource trolley,
                  IloNumVar makespan,
                  IloTransitionParam transitionParam);
  ~Job();
  void printSolution(IlcScheduler scheduler, ILOSTD(ostream)& out);
  const char* getName() const { return  _name;}

  IloActivity getLoadA() const { return _loadA;}
  IloActivity getUnload1() const { return _unload1;}
  IloActivity getProcess1() const { return _process1;}
  IloActivity getLoad1() const { return _load1;}
  IloActivity getUnload2() const { return _unload2;}
  IloActivity getProcess2() const { return _process2;}
  IloActivity getLoad2() const { return _load2;}
  IloActivity getUnloadS() const { return _unloadS;}

};


Job::Job(IloEnv env,
         const char*  name,
         IloNum loadDuration,
         IloUnaryResource machine1, IloNum duration1, IloInt area1,
         IloUnaryResource machine2, IloNum duration2, IloInt area2)
  : _name(name),
    _loadA(   env,loadDuration),
    _unload1( env,loadDuration),
    _process1(env,duration1),
    _load1(   env,loadDuration),
    _unload2( env,loadDuration),
    _process2(env,duration2),
    _load2(   env,loadDuration),
    _unloadS( env,loadDuration),
    _area1(area1),
    _area2(area2),
    _machine1(machine1),
    _machine2(machine2)
{
  char buffer[256];

  sprintf(buffer, "arrival_load_%s", name);
  _loadA.setName(buffer);

  sprintf(buffer, "area%ld_unload_%s", area1, name);
  _unload1.setName(buffer);

  sprintf(buffer, "machine%ld_%s", area1, name);
  _process1.setName(buffer);

  sprintf(buffer, "area%ld_load_%s", area1, name);
  _load1.setName(buffer);

  sprintf(buffer, "area%ld_unload_%s", area2, name);
  _unload2.setName(buffer);

  sprintf(buffer, "machine%ld_%s", area2, name);
  _process2.setName(buffer);

  sprintf(buffer, "area%ld_load_%s", area2, name);
  _load2.setName(buffer);

  sprintf(buffer, "stock_load_%s", name);
  _unloadS.setName(buffer);

  _loadA.setTransitionType(AREAA - 1);
  _unload1.setTransitionType(_area1 - 1);
  _load1.setTransitionType(_area1 - 1);
  _unload2.setTransitionType(_area2 - 1);
  _load2.setTransitionType(_area2 - 1);
  _unloadS.setTransitionType(AREAS - 1);
}

Job::~Job()
{}

void Job::addToModel(IloModel model,
                     IloStateResource trolley,
                     IloNumVar makespan,
                     IloTransitionParam transitionParam)
{
  /* ADD MACHINE REQUIREMENT CONSTRAINTS */
  model.add(_process1.requires(_machine1));
  model.add(_process2.requires(_machine2));

  /* ADD TEMPORAL CONSTRAINTS BETWEEN ACTIVITIES */
  IloNum delay = transitionParam.getValue((IloInt)_loadA.getTransitionType(),
                                          (IloInt)_unload1.getTransitionType());
  model.add(_unload1.startsAfterEnd(_loadA, delay));
  model.add(_process1.startsAfterEnd(_unload1));
  model.add(_load1.startsAfterEnd(_process1));
  delay = transitionParam.getValue((IloInt)_load1.getTransitionType(),
                                   (IloInt)_unload2.getTransitionType());
  model.add(_unload2.startsAfterEnd(_load1, delay));
  model.add(_process2.startsAfterEnd(_unload2));
  model.add(_load2.startsAfterEnd(_process2));
  delay = transitionParam.getValue((IloInt)_load2.getTransitionType(),
                                   (IloInt)_unloadS.getTransitionType());
  model.add(_unloadS.startsAfterEnd(_load2, delay));

  /* ADD TROLLEY POSITION REQUIREMENTS  */
  model.add(_loadA.requires(trolley, (IloAny)AREAA));
  model.add(_unload1.requires(trolley, (IloAny)_area1));
  model.add(_load1.requires(trolley, (IloAny)_area1));
  model.add(_unload2.requires(trolley, (IloAny)_area2));
  model.add(_load2.requires(trolley, (IloAny)_area2));
  model.add(_unloadS.requires(trolley, (IloAny)AREAS));

  /* ADD MAKESPAN CONSTRAINT */
  model.add(_unloadS.endsBefore(makespan));
}


void Job::printSolution(IlcScheduler scheduler, ILOSTD(ostream)& out)
{
  /* PRINT JOB */
  out
    << "JOB " << _name << endl
    << "\t Load at area A: "
    << scheduler.getActivity( _loadA ) << endl
    << "\t Unload at area " << (long)_area1 << ": "
    << scheduler.getActivity( _unload1 )   << endl
    << "\t Process on machine " << (long)_area1 << ": "
    << scheduler.getActivity( _process1 )  << endl
    << "\t Load at area "   << (long)_area1 << ": "
    << scheduler.getActivity( _load1 )     << endl
    << "\t Unload at area " << (long)_area2 << ": "
    << scheduler.getActivity( _unload2 )   << endl
    << "\t Process on machine " << (long)_area2 << ": "
    << scheduler.getActivity( _process2 )  << endl
    << "\t Load at area "   << (long)_area2 << " : "
    << scheduler.getActivity( _load2 )     << endl
    << "\t Unload at area S: "
    << scheduler.getActivity( _unloadS )   << endl;
}


///////////////////////////////////////////////////////////////////////////////
//
// PROBLEM DEFINITION
//
///////////////////////////////////////////////////////////////////////////////

#if defined(ILO_SDXLOUTPUT)
#include "sdxltrolley.h"
#endif

IloModel DefineModel(IloEnv env,
                     const char** jobNames,
                     IloNum*      transitDurations,
                     IloInt*      machines1,
                     IloNum*      durations1,
                     IloInt*      machines2,
                     IloNum*      durations2,
                     IloAnyArray&  jobs,
                     IloStateResource& trolley,
                     IloArray<IloUnaryResource>& machines,
                     IloNumVar&   makespan)
{
  IloInt i, j;
  IloModel model(env);

  /* CREATE THE MAKESPAN VARIABLE. */
  IloNum horizon =
    numberOfJobs * ((6 * loadDuration) +
                    (4 * getMaxTransitDuration(5, transitDurations)));
  for (i = 0; i < numberOfJobs; i++)
    horizon += durations1[i] + durations2[i];
  makespan = IloNumVar(env,0,horizon,ILOINT);
  /* CREATE THE TROLLEY POSITION RESOURCE */
  IloAnyArray arrayOfPossibleAreas(env,
                                   5,
                                   (IloAny)AREAA,
                                   (IloAny)MACH1,
                                   (IloAny)MACH2,
                                   (IloAny)MACH3,
                                   (IloAny)AREAS);
  IloAnySet   setOfPossibleAreas(env,arrayOfPossibleAreas);
  trolley = IloStateResource(env,setOfPossibleAreas, "trolley");
  /* CREATE THE (SYMMETRIC) TRANSITION TIME TABLE */
  IloTransitionParam transitionParam(env, 5, IloTrue);
  for (i = 0; i < 5; i++)
    for (j = i; j < 5; j++)
      transitionParam.setValue(i,j,transitDurations[j + (5 * i)]);
  /* ASSOCIATE A TRANSITION TIME TO THE RESOURCE */
  IloTransitionTime transitionTime(trolley,transitionParam);

  /* SELECT APPROPRIATE ENFORCEMENT LEVEL */
  trolley.setTransitionTimeEnforcement(IloBasic);
  trolley.setCapacityEnforcement(IloMediumHigh);
  /* CREATE THE MACHINES RESOURCES */
  char buffer[256];
  machines = IloArray<IloUnaryResource>(env, 3);
  for (i = 0; i < 3; i++) {
    sprintf(buffer, "machine%ld", i + 1);
    machines[i] = IloUnaryResource(env, buffer);
  }

  /* CREATION OF JOB INSTANCES */
  jobs = IloAnyArray(env, numberOfJobs);
  for (i = 0; i < numberOfJobs; i++) {
    Job* job = new (env) Job(env,
                             jobNames[i],
                             loadDuration,
                             machines[machines1[i] - 1],
                             durations1[i], machines1[i],
                             machines[machines2[i] - 1],
                             durations2[i], machines2[i]);
    jobs[i] = job;
    job->addToModel(model, trolley, makespan, transitionParam);
  }

  /* WE LOOK FOR AN OPTIMAL SOLUTION */
  model.add(IloMinimize(env, makespan));

  /* RETURN THE CREATED MODEL */
  return model;
}


///////////////////////////////////////////////////////////////////////////////
//
// PRINTING OF SOLUTIONS
//
///////////////////////////////////////////////////////////////////////////////

void PrintSolution(IloSolver solver,
                   IloAnyArray jobs,
                   IloStateResource trolley,
                   IloArray<IloUnaryResource> machines,
                   IloNumVar makespan)
{
  IlcScheduler scheduler(solver);

  solver.out() << "makespan = " << solver.getMin(makespan) << endl;
  for (IloInt i = 0; i < numberOfJobs; i++)
    ((Job*) jobs[i])->printSolution(scheduler, solver.out());

  solver.out() << "TROLLEY POSITIONS: " << endl;

  IlcStateResourceIterator ite(scheduler);
  IlcAnyTimetable tt = scheduler.getStateResource(trolley).getTimetable();
  for (IlcAnyTimetableCursor cr(tt,0); cr.ok(); ++cr)
    if (cr.isBound())
      solver.out() << "\t [" << cr.getTimeMin()
                   << "," << cr.getTimeMax()
                   << "): Position " << (long)cr.getValue()
                   << endl;

  solver.printInformation();

#if defined(ILO_SDXLOUTPUT)
  IloSDXLTrolleyOutput output(solver.getEnv());
  ofstream outFile("trolley2.xml");
  output.writeTrolley(scheduler,
                      outFile,
                      jobs,
                      trolley,
                      (IloInt) 1000,
                      machines,
                      makespan);
  outFile.close();
#endif

}


///////////////////////////////////////////////////////////////////////////////
//
// MAIN FUNCTION
//
///////////////////////////////////////////////////////////////////////////////

int main(int argc, char** argv) {
  IloInt failLimit        = 1000;
  if (argc > 1)
    failLimit = atol(argv[1]);

  try {
    IloEnv env;
    IloAnyArray jobs;
    IloStateResource trolley;
    IloArray<IloUnaryResource> machines;
    IloNumVar makespan;
    IloModel model = DefineModel(env,
        JobNames,
        TransitDurations,
        Machines1, Durations1,
        Machines2, Durations2,
        jobs,
        trolley,
        machines,
        makespan);

    IloBool solved = IloFalse;
    IloNum  minMakespan = 0.;

    IloSolver solver(model);
    IloGoal unlimitedGoal = IloSetTimesForward(env, makespan);
    IloGoal limitedGoal = IloLimitSearch(env, unlimitedGoal,
                                         IloFailLimit(env,failLimit) );
    solver.startNewSearch(limitedGoal);

    while (solver.next()==IlcTrue) {
             solved = IloTrue;
      minMakespan = solver.getMin(makespan);
      solver.out() << "SOLUTION WITH MAKESPAN "
                          << minMakespan << endl;
    }
    solver.endSearch();

    if (solved){
      makespan.setBounds(minMakespan,minMakespan);
      solver.solve(unlimitedGoal);
      PrintSolution(solver,jobs,trolley,machines,makespan);
    } else {
      solver.out() << "NO SOLUTION FOUND" << endl;
    }
    env.end();

  } catch (IloException& exc) {
    cout << exc << endl;
  }

  return 0;
}


///////////////////////////////////////////////////////////////////////////////
//
// RESULTS
//
///////////////////////////////////////////////////////////////////////////////
/*

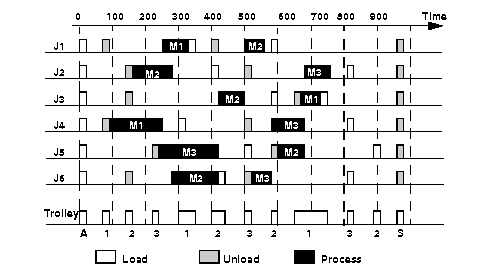

  SOLUTION WITH MAKESPAN 1220
  SOLUTION WITH MAKESPAN 1130
  SOLUTION WITH MAKESPAN 1110
  SOLUTION WITH MAKESPAN 1070
  SOLUTION WITH MAKESPAN 990
  SOLUTION WITH MAKESPAN 980
  makespan = 980
  JOB J1
         Load at area A: [0 -- 20 --> 20]
         Unload at area 1: [70 -- 20 --> 90]
         Process on machine 1: [250 -- 80 --> 330]
         Load at area 1: [330 -- 20 --> 350]
         Unload at area 2: [400 -- 20 --> 420]
         Process on machine 2: [500 -- 60 --> 560]
         Load at area 2 : [580 -- 20 --> 600]
         Unload at area S: [960 -- 20 --> 980]
  JOB J2
         Load at area A: [0 -- 20 --> 20]
         Unload at area 2: [140 -- 20 --> 160]
         Process on machine 2: [160 -- 120 --> 280]
         Load at area 2: [400 -- 20 --> 420]
         Unload at area 3: [500 -- 20 --> 520]
         Process on machine 3: [680 -- 80 --> 760]
         Load at area 3 : [810 -- 20 --> 830]
         Unload at area S: [960 -- 20 --> 980]
  JOB J3
         Load at area A: [0 -- 20 --> 20]
         Unload at area 2: [140 -- 20 --> 160]
         Process on machine 2: [420 -- 80 --> 500]
         Load at area 2: [580 -- 20 --> 600]
         Unload at area 1: [650 -- 20 --> 670]
         Process on machine 1: [670 -- 60 --> 730]
         Load at area 1 : [730 -- 20 --> 750]
         Unload at area S: [960 -- 20 --> 980]
  JOB J4
         Load at area A: [0 -- 20 --> 20]
         Unload at area 1: [70 -- 20 --> 90]
         Process on machine 1: [90 -- 160 --> 250]
         Load at area 1: [300 -- 20 --> 320]
         Unload at area 3: [500 -- 20 --> 520]
         Process on machine 3: [580 -- 100 --> 680]
         Load at area 3 : [810 -- 20 --> 830]
         Unload at area S: [960 -- 20 --> 980]
  JOB J5
         Load at area A: [0 -- 20 --> 20]
         Unload at area 3: [220 -- 20 --> 240]
         Process on machine 3: [240 -- 180 --> 420]
         Load at area 3: [500 -- 20 --> 520]
         Unload at area 2: [580 -- 20 --> 600]
         Process on machine 2: [600 -- 80 --> 680]
         Load at area 2 : [890 -- 20 --> 910]
         Unload at area S: [960 -- 20 --> 980]
  JOB J6
         Load at area A: [0 -- 20 --> 20]
         Unload at area 2: [140 -- 20 --> 160]
         Process on machine 2: [280 -- 140 --> 420]
         Load at area 2: [420 -- 20 --> 440]
         Unload at area 3: [500 -- 20 --> 520]
         Process on machine 3: [520 -- 60 --> 580]
         Load at area 3 : [810 -- 20 --> 830]
         Unload at area S: [960 -- 20 --> 980]
  TROLLEY POSITIONS:
         [0,20): Position 4
         [70,90): Position 1
         [140,160): Position 2
         [220,240): Position 3
         [300,320): Position 1
         [330,350): Position 1
         [400,440): Position 2
         [500,520): Position 3
         [580,600): Position 2
         [650,670): Position 1
         [730,750): Position 1
         [810,830): Position 3
         [890,910): Position 2
         [960,980): Position 5
*/
