You can see the entire program trolley1.cpp here or view it online in the standard distribution.

#include <ilsched/iloscheduler.h>

ILOSTLBEGIN
const IloInt MACH1 = 1; // Machine 1 area
const IloInt MACH2 = 2; // Machine 2 area
const IloInt MACH3 = 3; // Machine 3 area
const IloInt AREAA = 4; // Arrival area
const IloInt AREAS = 5; // Stock area
const IloNum loadDuration = 20;
const IloInt numberOfJobs = 6;

const char*  JobNames [] = { "J1",   "J2",   "J3",   "J4",   "J5",   "J6"};
IloInt Machines1      [] = { 1,      2,      2,      1,      3,      2   };
IloNum Durations1     [] = { 80,     120,    80,     160,    180,    140 };
IloInt Machines2      [] = { 2,      3,      1,      3,      2,      3   };
IloNum Durations2     [] = { 60,     80,     60,     100,    80,     60  };
///////////////////////////////////////////////////////////////////////////////
//
// DEFINITION OF THE JOB CLASS
//
///////////////////////////////////////////////////////////////////////////////
class Job {
private:
  const char* _name;
  IloActivity _loadA;
  IloActivity _unload1;
  IloActivity _process1;
  IloActivity _load1;
  IloActivity _unload2;
  IloActivity _process2;
  IloActivity _load2;
  IloActivity _unloadS;
  IloInt      _area1;
  IloInt      _area2;
  IloUnaryResource _machine1;
  IloUnaryResource _machine2;
public:
  Job(IloEnv env,
      const char*,
      IloNum,
      IloUnaryResource, IloNum, IloInt,
      IloUnaryResource, IloNum, IloInt);
  ~Job();
  void addToModel(IloModel model,
                  IloStateResource trolley,
                  IloNumVar makespan);
  void printSolution(IlcScheduler scheduler, ILOSTD(ostream)& out);
  const char* getName() const { return  _name;}

  IloActivity getLoadA() const { return _loadA;}
  IloActivity getUnload1() const { return _unload1;}
  IloActivity getProcess1() const { return _process1;}
  IloActivity getLoad1() const { return _load1;}
  IloActivity getUnload2() const { return _unload2;}
  IloActivity getProcess2() const { return _process2;}
  IloActivity getLoad2() const { return _load2;}
  IloActivity getUnloadS() const { return _unloadS;}

};

Job::Job(IloEnv env,
         const char*  name,
         IloNum loadDuration,
         IloUnaryResource machine1, IloNum duration1, IloInt area1,
         IloUnaryResource machine2, IloNum duration2, IloInt area2)
  : _name(name),
    _loadA(   env,loadDuration),
    _unload1( env,loadDuration),
    _process1(env,duration1),
    _load1(   env,loadDuration),
    _unload2( env,loadDuration),
    _process2(env,duration2),
    _load2(   env,loadDuration),
    _unloadS( env,loadDuration),
    _area1(area1),
    _area2(area2),
    _machine1(machine1),
    _machine2(machine2)
{
  char buffer[256];

  sprintf(buffer, "arrival_load_%s", name);
  _loadA.setName(buffer);

  sprintf(buffer, "area%ld_unload_%s", area1, name);
  _unload1.setName(buffer);

  sprintf(buffer, "machine%ld_%s", area1, name);
  _process1.setName(buffer);

  sprintf(buffer, "area%ld_load_%s", area1, name);
  _load1.setName(buffer);

  sprintf(buffer, "area%ld_unload_%s", area2, name);
  _unload2.setName(buffer);

  sprintf(buffer, "machine%ld_%s", area2, name);
  _process2.setName(buffer);

  sprintf(buffer, "area%ld_load_%s", area2, name);
  _load2.setName(buffer);

  sprintf(buffer, "stock_load_%s", name);
  _unloadS.setName(buffer);

}

Job::~Job()
{}

void Job::addToModel(IloModel model,
                     IloStateResource trolley,
                     IloNumVar makespan)
{
  /* ADD MACHINE REQUIREMENT CONSTRAINTS */
  model.add(_process1.requires(_machine1));
  model.add(_process2.requires(_machine2));

  /* ADD TEMPORAL CONSTRAINTS BETWEEN ACTIVITIES */
  model.add(_unload1.startsAfterEnd(_loadA));
  model.add(_process1.startsAfterEnd(_unload1));
  model.add(_load1.startsAfterEnd(_process1));
  model.add(_unload2.startsAfterEnd(_load1));
  model.add(_process2.startsAfterEnd(_unload2));
  model.add(_load2.startsAfterEnd(_process2));
  model.add(_unloadS.startsAfterEnd(_load2));

  /* ADD TROLLEY POSITION REQUIREMENTS  */
  model.add(_loadA.requires(trolley, (IloAny)AREAA));
  model.add(_unload1.requires(trolley, (IloAny)_area1));
  model.add(_load1.requires(trolley, (IloAny)_area1));
  model.add(_unload2.requires(trolley, (IloAny)_area2));
  model.add(_load2.requires(trolley, (IloAny)_area2));
  model.add(_unloadS.requires(trolley, (IloAny)AREAS));

  /* ADD MAKESPAN CONSTRAINT */
  model.add(_unloadS.endsBefore(makespan));
}

void Job::printSolution(IlcScheduler scheduler, ILOSTD(ostream)& out)
{
  /* PRINT JOB */
  out
    << "JOB " << _name << endl
    << "\t Load at area A: "
    << scheduler.getActivity( _loadA ) << endl
    << "\t Unload at area " << (long)_area1 << ": "
    << scheduler.getActivity( _unload1 )   << endl
    << "\t Process on machine " << (long)_area1 << ": "
    << scheduler.getActivity( _process1 )  << endl
    << "\t Load at area "   << (long)_area1 << ": "
    << scheduler.getActivity( _load1 )     << endl
    << "\t Unload at area " << (long)_area2 << ": "
    << scheduler.getActivity( _unload2 )   << endl
    << "\t Process on machine " << (long)_area2 << ": "
    << scheduler.getActivity( _process2 )  << endl
    << "\t Load at area "   << (long)_area2 << " : "
    << scheduler.getActivity( _load2 )     << endl
    << "\t Unload at area S: "
    << scheduler.getActivity( _unloadS )   << endl;
}

///////////////////////////////////////////////////////////////////////////////
//
// PROBLEM DEFINITION
//
///////////////////////////////////////////////////////////////////////////////

#if defined(ILO_SDXLOUTPUT)
#include "sdxltrolley.h"
#endif

IloModel DefineModel(IloEnv env,
                     const char** jobNames,
                     IloInt*      machines1,
                     IloNum*      durations1,
                     IloInt*      machines2,
                     IloNum*      durations2,
                     IloAnyArray&  jobs,
                     IloStateResource& trolley,
                     IloArray<IloUnaryResource>& machines,
                     IloNumVar&   makespan)
{
  IloInt i;
  IloModel model(env);
  /* CREATE THE MAKESPAN VARIABLE. */
  makespan = IloNumVar(env,0,10000,ILOINT);
  /* CREATE THE TROLLEY POSITION RESOURCE */
  IloAnyArray arrayOfPossibleAreas(env,
                                   5,
                                   (IloAny)AREAA,
                                   (IloAny)MACH1,
                                   (IloAny)MACH2,
                                   (IloAny)MACH3,
                                   (IloAny)AREAS);
  IloAnySet setOfPossibleAreas(env,arrayOfPossibleAreas);
  trolley = IloStateResource(env,setOfPossibleAreas, "trolley");
  /* CREATE THE MACHINES RESOURCES */
  char buffer[256];
  machines = IloArray<IloUnaryResource>(env, 3);
  for (i = 0; i < 3; i++) {
    sprintf(buffer, "machine%ld", i + 1);
    machines[i] = IloUnaryResource(env, buffer);
  }
  /* CREATION OF JOB INSTANCES */
  jobs = IloAnyArray(env, numberOfJobs);
  for (i = 0; i < numberOfJobs; i++) {
    Job* job = new (env) Job(env,
                             jobNames[i],
                             loadDuration,
                             machines[machines1[i] - 1],
                             durations1[i], machines1[i],
                             machines[machines2[i] - 1],
                             durations2[i], machines2[i]);
    jobs[i] = job;
    job->addToModel(model, trolley, makespan);
  }
  /* WE LOOK FOR AN OPTIMAL SOLUTION */
  model.add(IloMinimize(env, makespan));
  /* RETURN THE CREATED MODEL */
  return model;
}


///////////////////////////////////////////////////////////////////////////////
//
// PRINTING OF SOLUTIONS
//
///////////////////////////////////////////////////////////////////////////////

void PrintSolution(IloSolver solver,
                   IloAnyArray jobs,
                   IloStateResource trolley,
                   IloArray<IloUnaryResource> machines,
                   IloNumVar makespan)
{
  IlcScheduler scheduler(solver);

  solver.out() << "Solution with makespan " << solver.getMin(makespan) << endl;
  IloInt numberOfJobs = jobs.getSize();
  for (IloInt i = 0; i < numberOfJobs; i++)
    ((Job*) jobs[i])->printSolution(scheduler, solver.out());

  // Output from algorithm
  solver.out() << "TROLLEY POSITIONS: " << endl;

  IlcAnyTimetable tt = scheduler.getStateResource(trolley).getTimetable();
  for (IlcAnyTimetableCursor cr(tt,0); cr.ok(); ++cr)
    if (cr.isBound())
      solver.out() << "\t [" << cr.getTimeMin()
                   << "," << cr.getTimeMax()
                   << "): Position " << (long)cr.getValue()
                   << endl;
  solver.printInformation();

#if defined(ILO_SDXLOUTPUT)
  IloSDXLTrolleyOutput output(solver.getEnv());
  ofstream outFile("trolley1.xml");
  output.writeTrolley(scheduler,
                      outFile,
                      jobs,
                      trolley,
                      (IloInt) 1000,
                      machines,
                      makespan);
  outFile.close();
#endif

}
///////////////////////////////////////////////////////////////////////////////
//
// MAIN FUNCTION
//
///////////////////////////////////////////////////////////////////////////////

int main() {
  try {
    IloEnv env;
    IloAnyArray jobs;
    IloStateResource trolley;
    IloArray<IloUnaryResource> machines;
    IloNumVar makespan;
    IloModel model = DefineModel(env,
        JobNames,
        Machines1, Durations1,
        Machines2, Durations2,
        jobs,
        trolley,
        machines,
        makespan);

     IloSolver solver(model);
     IlcScheduler scheduler(solver);
     IloGoal goal = IloSetTimesForward(env, makespan);

     if (solver.solve(goal)) {
       PrintSolution(solver,jobs,trolley,machines,makespan);
     }
     else
       solver.out() << "No Solution" << endl;

     env.end();

  } catch (IloException& exc) {
    cout << exc << endl;
  }
  return 0;
}


///////////////////////////////////////////////////////////////////////////////
//

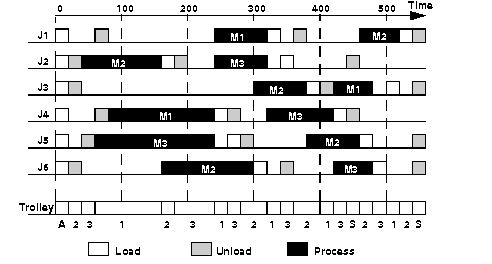

// RESULTS
//
///////////////////////////////////////////////////////////////////////////////

/*
  Solution with makespan 560
  JOB J1
         Load at area A: [0 -- 20 --> 20]
         Unload at area 1: [60 -- 20 --> 80]
         Process on machine 1: [240 -- 80 --> 320]
         Load at area 1: [320 -- 20 --> 340]
         Unload at area 2: [360 -- 20 --> 380]
         Process on machine 2: [460 -- 60 --> 520]
         Load at area 2 : [520 -- 20 --> 540]
         Unload at area S: [540 -- 20 --> 560]
  JOB J2
         Load at area A: [0 -- 20 --> 20]
         Unload at area 2: [20 -- 20 --> 40]
         Process on machine 2: [40 -- 120 --> 160]
         Load at area 2: [160 -- 20 --> 180]
         Unload at area 3: [180 -- 20 --> 200]
         Process on machine 3: [240 -- 80 --> 320]
         Load at area 3 : [340 -- 20 --> 360]
         Unload at area S: [440 -- 20 --> 460]
  JOB J3
         Load at area A: [0 -- 20 --> 20]
         Unload at area 2: [20 -- 20 --> 40]
         Process on machine 2: [300 -- 80 --> 380]
         Load at area 2: [380 -- 20 --> 400]
         Unload at area 1: [400 -- 20 --> 420]
         Process on machine 1: [420 -- 60 --> 480]
         Load at area 1 : [500 -- 20 --> 520]
         Unload at area S: [540 -- 20 --> 560]
  JOB J4
         Load at area A: [0 -- 20 --> 20]
         Unload at area 1: [60 -- 20 --> 80]
         Process on machine 1: [80 -- 160 --> 240]
         Load at area 1: [240 -- 20 --> 260]
         Unload at area 3: [260 -- 20 --> 280]
         Process on machine 3: [320 -- 100 --> 420]
         Load at area 3 : [420 -- 20 --> 440]
         Unload at area S: [440 -- 20 --> 460]
  JOB J5
         Load at area A: [0 -- 20 --> 20]
         Unload at area 3: [40 -- 20 --> 60]
         Process on machine 3: [60 -- 180 --> 240]
         Load at area 3: [260 -- 20 --> 280]
         Unload at area 2: [280 -- 20 --> 300]
         Process on machine 2: [380 -- 80 --> 460]
         Load at area 2 : [460 -- 20 --> 480]
         Unload at area S: [540 -- 20 --> 560]
  JOB J6
         Load at area A: [0 -- 20 --> 20]
         Unload at area 2: [20 -- 20 --> 40]
         Process on machine 2: [160 -- 140 --> 300]
         Load at area 2: [300 -- 20 --> 320]
         Unload at area 3: [340 -- 20 --> 360]
         Process on machine 3: [420 -- 60 --> 480]
         Load at area 3 : [480 -- 20 --> 500]
         Unload at area S: [540 -- 20 --> 560]
  TROLLEY POSITIONS:
         [0,20): Position 4
         [20,40): Position 2
         [40,60): Position 3
         [60,80): Position 1
         [160,180): Position 2
         [180,200): Position 3
         [240,260): Position 1
         [260,280): Position 3
         [280,320): Position 2
         [320,340): Position 1
         [340,360): Position 3
         [360,400): Position 2
         [400,420): Position 1
         [420,440): Position 3
         [440,460): Position 5
         [460,480): Position 2
         [480,500): Position 3
         [500,520): Position 1
         [520,540): Position 2
         [540,560): Position 5
*/
